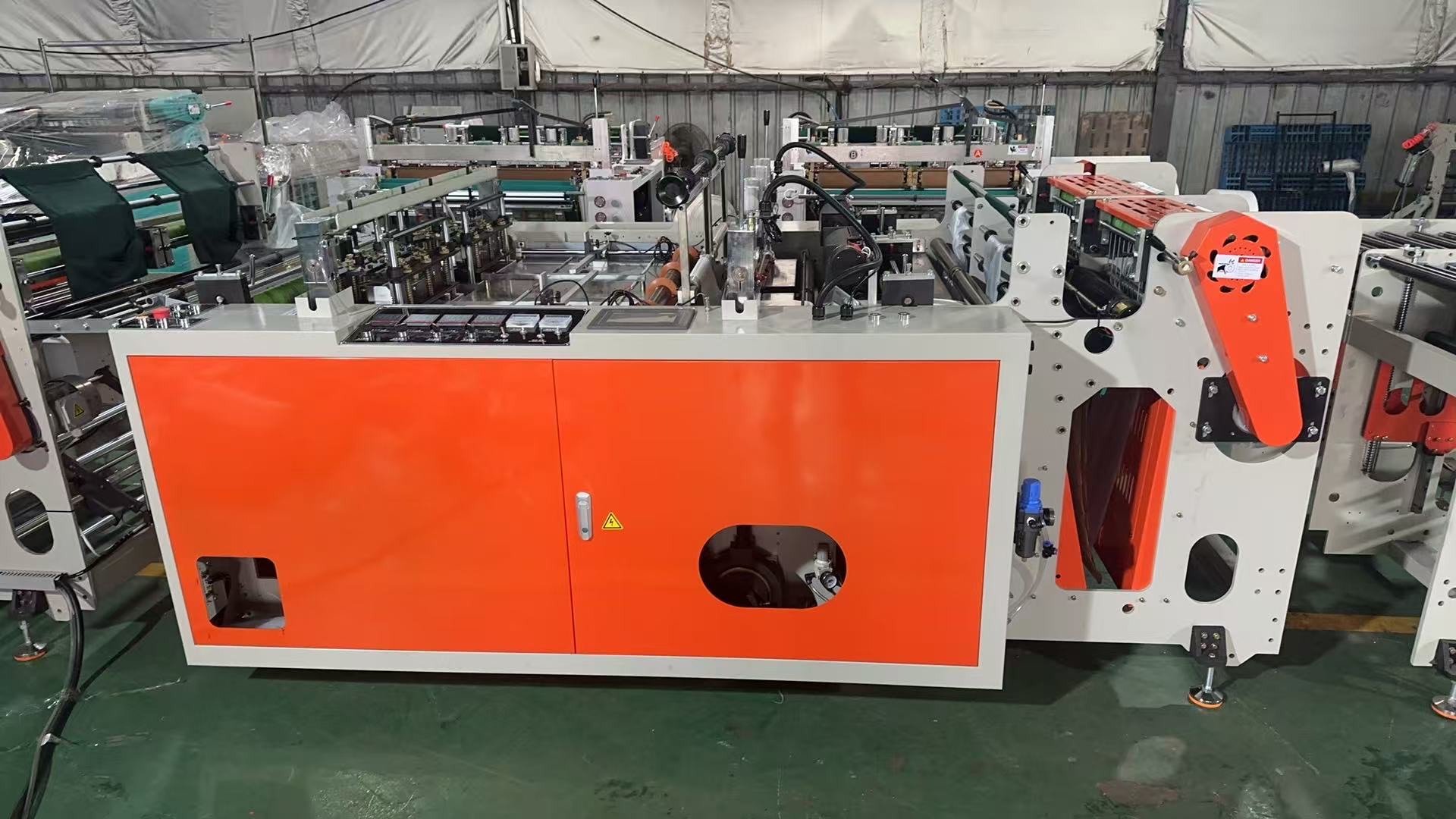

The fully automatic, high-speed, dual-lane/multi-lane T-shirt bag (carrier bag) production line introduced here is a powerful automation tool—specifically tailored for modern plastic packaging plants—designed to cut costs and boost efficiency. High-Efficiency Roll Unwinding and Feeding System:
The machine’s front end features a high-precision unwinding mechanism that handles plastic film rolls printed with the classic “HAVE A NICE DAY” and smiley face design. Through the precise coordination of pneumatic and mechanical drives, the film is fed smoothly and steadily into the main production line, ensuring it remains free from breakage, misalignment, or wrinkling during high-speed operation.
Multi-Lane Stable Transmission and Tension Control:
The film passes through multiple sets of high-precision rollers for tension adjustment and smooth guiding. The dual-lane/multi-lane design allows multiple production lines to operate in parallel, exponentially increasing output capacity. Whether using plain or printed film, the system maintains exceptional operational stability.
Photoelectric Tracking and Positioning System:
Prior to the heat-sealing and cutting stages, the equipment is fitted with highly sensitive photoelectric sensors (electric eyes). These sensors scan registration marks (color marks) on the film in real-time, ensuring precision in every cut and seal. Even at very high speeds, the system guarantees centered patterns and uniform dimensions, effectively eliminating misalignment and defective products.
Temperature-Controlled Heat Sealing and High-Speed Cutting:
The central control panel displays precise digital temperature settings (e.g., 224°C), providing stable and consistent heat-sealing temperatures for plastic films of varying thicknesses and materials (PE, PP, biodegradable materials, etc.). The resulting seals are strong and airtight, followed by an instantaneous, clean cut performed by a high-speed cutter.
Intelligent Punching and Handle Die-Cutting:
Once cut to size, the bag bodies enter the core punching unit. A pneumatic/hydraulic head descends with precision to instantly cut out the handle section, forming the standard “vest-style” (supermarket carrier bag) shape in a single pressing and cutting operation. Waste material is automatically separated, while the finished bags are neatly organized and stacked.
Automatic Stacking and Orderly Conveyance:
After being punched and formed, the bags are neatly stacked on the conveyor belt in preset quantities (e.g., batches of 50 or 100) and automatically conveyed forward in a stepped arrangement, greatly facilitating downstream packaging and final quality inspections.
Modular Circuitry and Safety Control Cabinet:
A modular control cabinet is integrated into the side of the machine, housing intelligent drives, variable frequency drives (VFDs), and overload protection devices. This setup ensures safe, stable, 24-hour continuous operation while significantly simplifying future maintenance. Why is this automated equipment the ideal choice for packaging plant owners and entrepreneurs?
Advantage 1: Explosive Production Growth – Tens of Thousands of Bags Per Day
Featuring a dual-line or multi-line parallel cutting and punching design, the machine achieves a very high output rate. Compared to traditional single-line or semi-automatic equipment, a single unit can double production capacity, easily handling large-volume, urgent orders.
Advantage 2: Saves Time, Effort, and Labor – Drastically Reduces Overall Costs
The entire production line—from material feeding, sealing and cutting, and punching to stacking and output—is fully automated, allowing a single operator to easily manage multiple machines. This reduces reliance on skilled operators and saves the factory significant amounts on annual labor wages and management expenses.
Advantage 3: Intelligent Microcomputer Control – High Precision and High Yield
Utilizing a microcomputer PLC control interface combined with high-precision photoelectric tracking, sealing temperatures and cutting dimensions can be digitally and precisely adjusted. The seals are strong and resistant to bursting, handle cutouts are smooth and burr-free, and the finished product quality is excellent, ensuring high customer satisfaction. Advantage 4: High compatibility across various materials and specifications
The machine is compatible not only with standard high- and low-density polyethylene (HDPE/LDPE) plastic bags but can also be flexibly adjusted to handle popular eco-friendly, biodegradable materials (such as PLA and PBAT). Simple adjustments to mechanical parameters and temperature settings allow for the production of various items, including supermarket shopping bags, bags on a roll, and vest-style garbage bags.
Advantage 5: Compact structure and industrial-grade durability
The machine features a robust structure built from high-quality steel with a durable finish; drive components have undergone wear-resistance treatment to ensure quiet, low-vibration operation. High-quality electrical components guarantee exceptional stability and an extended service life.
